Zurich Instruments

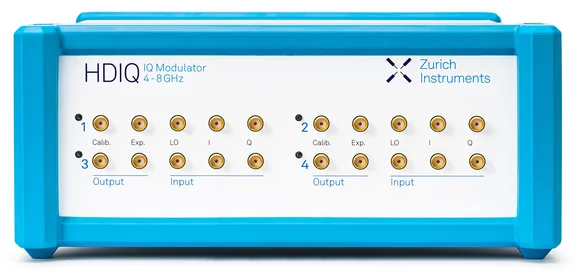

HDIQ IQ Modulator 調製器
主要特徵
- 4 頻道 IQ 調變器
- 射頻頻率範圍 4 – 8 GHz
- 中頻範圍 DC – 6 GHz
- 實驗輸出埠可在 RF 輸出和直接 LO 輸出之間切換
- 用於混頻器校準的獨立輸出端口
- 交流耦合射頻電路設計可防止接地迴路
- 混合器校準的 Python 程式設計範例
規格
General
| Number of IQ modulation units | 4 |
| Dimensions (including bumper) | 28.3 x 23.2 x 10.2 cm 11.1 x 9.1 x 4.0 inch |
| Weight (including bumper) | 2.9 kg; 6.4 lbs |
Frequency response
| RF/LO frequency range | 4 – 8 GHz |
| IF frequency range | DC – 6 GHz |
Gain
| Maximum gain1 | +5 dB @ 4 GHz |
Power
| RF/Calibration output 1 dB compression2 | +5 dBm |
| LO input power | Min. +1 dBm
Typ. +5 dBm Max. +7 dBm |
| I/Q input 1 dB compression2 | 0 dBm |
Carrier leakage, sideband suppression, crosstalk and SFDR
| Carrier leakage suppression3 | < -55 dBc |
| Sideband suppression3 | < -55 dBc |
| Crosstalk | < -50 dB @ 8.0 GHz
typ. < -65 dB |
| SFDR | > 40 dBc |
Operating modes
| Switchable modes | Calibration, RF (default), LO |
RF switches
| LO isolation3 | > 57 dB |
| Switching time | < 0.1 s |
Truth table
| Switchable mode | Output signal | RF SW14 | RF SW25 |
|---|---|---|---|
| RF (default) | RF (Exp.) | L | L |
| LO | LO (Exp.) | H | L |
| Calibration | RF (Calib.) | L | H |
| N/A | N/A | H | H |
1 The maximum gain is defined as PRF, Exp./PI or PRF, Exp./PQ.
2 This is limited by the amplifier and not by the IQ mixer.
3 The LO isolation is defined as PLO, input/PLO, Exp. in RF mode.
4 SW1 is the RF switch for the RF or the LO signal that goes to the Exp. output port.
5 SW2 is the RF switch for the RF signal that goes to the Calib. or to the Exp. output port.
