Zurich Instruments

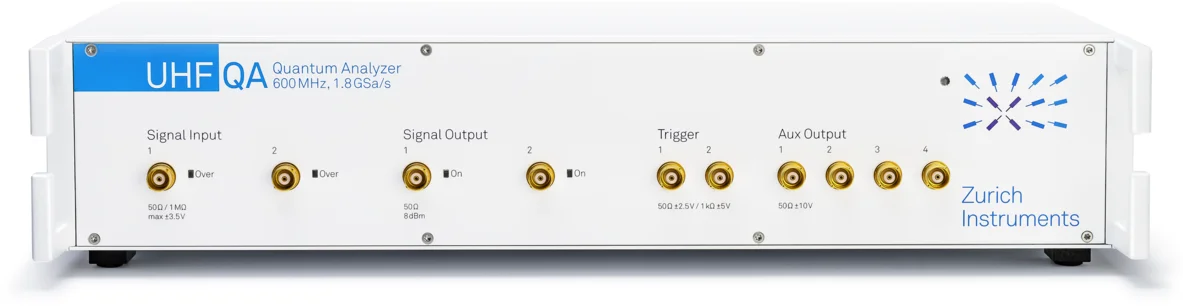

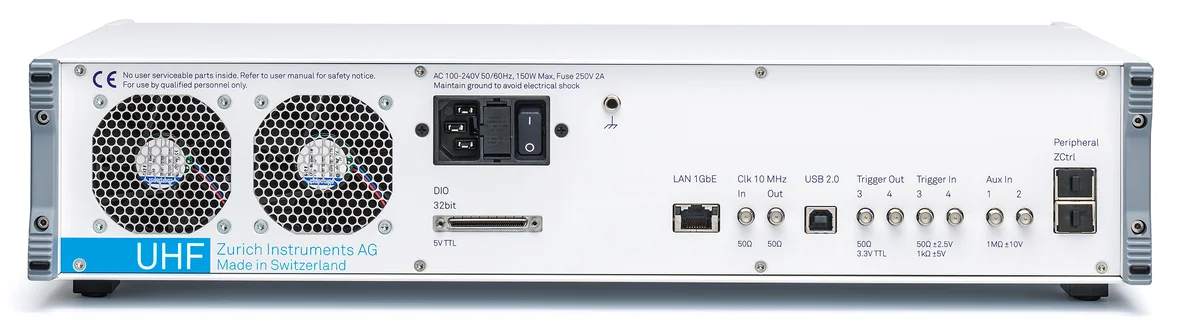

UHFQA 600 MHz Quantum Analyzer 量子分析儀
主要特徵
- 透過單邊帶調變實現 1.8 GSa/s、±600 MHz 測量範圍
- 12位元雙通道輸入，14位雙通道AWG
- 最多 10 個量子位元的平行讀出
- 可設定的匹配濾波器、訊號調理、串擾抑制、閾值操作
- LabOne ®控制軟體和 API，適用於 Python、C、MATLAB ®、LabVIEW™ 和 .NET
規格
Qubit measurement unit
| Filter memory | 4096 Sa/channel |
| Real-time matrix operations | 1× deskew (2×2 real) 10× rotation (2×2 real) 1x crosstalk suppression (10×10 complex) |
| Matrix elements | Range -1 to +1 Resolution <20e-6 |
| Data logger | Memory 1 MSa Max. 217 averages |
| Monitoring scope memory | 4096 Sa/channel, 2 channels |
| Monitoring scope averaging | Max. 215 averages |
| Statistics unit | Count number of logical 1 in bit pattern Count number of transitions in bit pattern |
UHF signal inputs
| Frequency range | DC – 600 MHz |
| Input impedance | 50 Ω or 1 MΩ || 18 pF |
| Input voltage noise | 4 nV/√Hz above 100 kHz |
| Input ranges | ±10 mV to ±1.5 V |
| A/D conversion | 12 bits, 1.8 GSa/s |
Arbitrary waveform generator
| Channels | 2 |
| Markers | 2/channel |
| D/A conversion | 14 bits, 1.8 GSa/s |
| Output ranges | ±150 mV, ±1.5 V (high-impedance load) -12.5 dBm, +7.5 dBm (50 Ω load) |
| Waveform memory | 128 MSa/channel (main) 32 kSa/channel (cache) |
