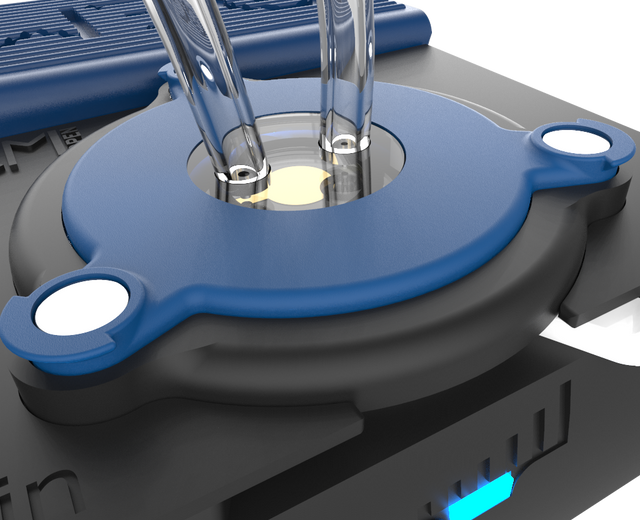

openQCM Sensor Module (openQCM 感知器模組)

此感測器模組設計為與所有 openQCM 設備相容，並且可以承載多種石英感測器。感測器模組將與其接近電子裝置一起發貨。不包括流體蓋或開放蓋。

注意：openQCM Q-1 和 openQCM Wi2 設備中已包含感測器模組

規格

Electrical Connection	USB 3.0 Type A (custom wiring to openQCM Q-1 Shield)
Accepted quartz sensor diameters	14 mm
O-Ring Material	KFM (Viton)
O-ring hardness	60 (for 14mm base o-oring) and 70 (for 25.4 mm base o-ring)
Fluidic Window Material	PMMA (Included as default)
Temperature Sensor	MCP9808 – I2C
Input Voltage	3V3
Max current	200 μA @ 3V3
Length	66 mm
Width	50 mm
Height	26 mm
Material	Nylon (case)
Exposed materials to the samples	VIton (o-ring), Quartz, Gold electrode (or other sensor coating), PMMA or PTFE (optional)
Total weight	43 g
